Marquee

PreviousLiquidNextMeteors

Last updated 5 years ago

The Marquee effect displays scrolling lines or bands of pixels around the edge of an model or from one end of a line to the other. One or multiple colors can be used for the effect. If multiple colors are selected, then the bands of the effect will be sequentially selected from the colors chosen.

Option/Settings

Description

Band Size

Controls the proportion ( % wise) of the circumference of the marquee effect that the pixels will light up.

Skip Size

Controls the proportion (% wise) of the circumference of the marquee that will be skipped by the pixel color ie will be dark.

Thickness

Controls the thickness of the marquee effect ie how many pixels wide.

Stagger

Defines the orientation of the pixel band thickness (visible if the thickness is > 1).

Speed

Controls the speed at which the marquee effect moves around.

Start Position

Shifts the start position.

Reverse

If selected, reverses the direction of the effect to counterclockwise.

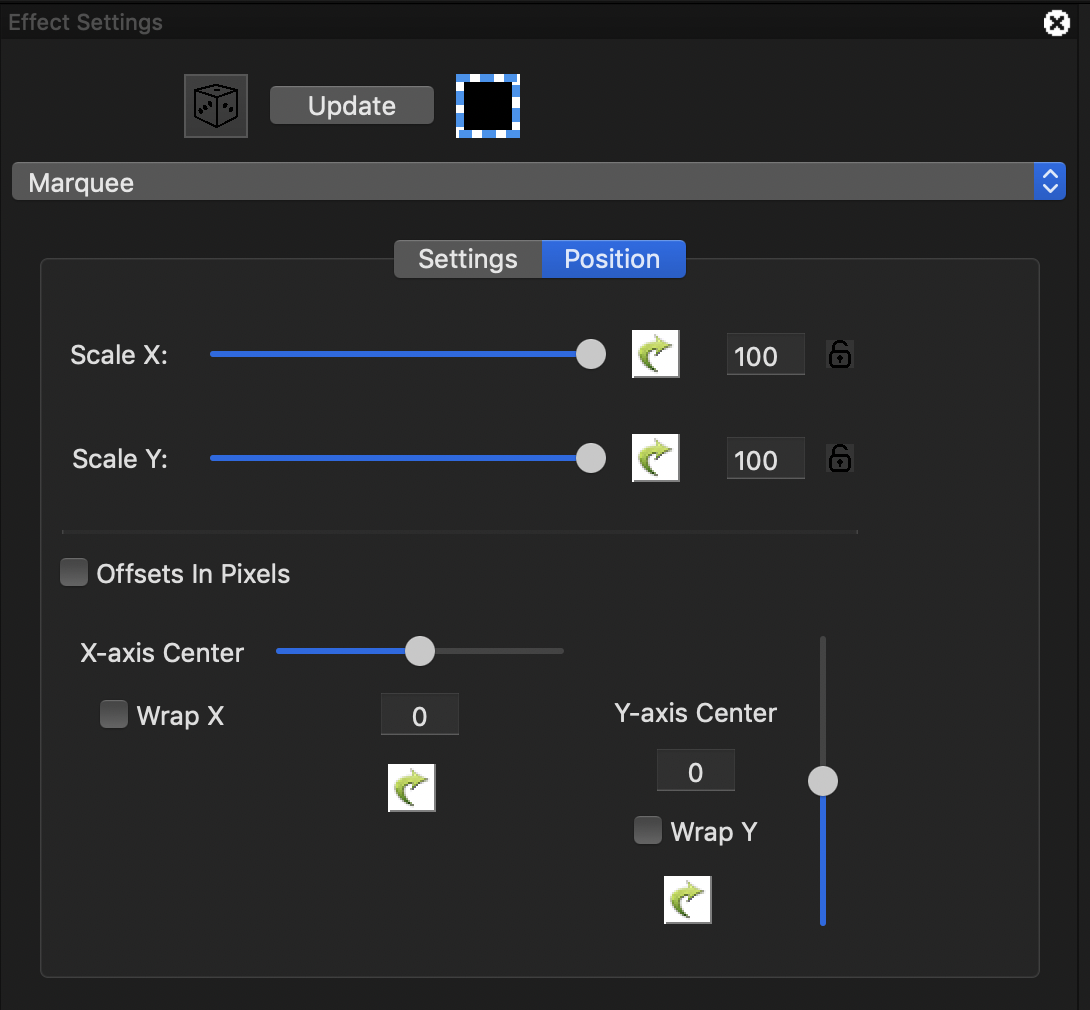

Scale (x:y)

Used to control the scale (i.e. boundary) of the marquee effect.

Defined as a % from -100% to + 100% if ‘Offset in Pixels is not ticked

Defined as number of Pixels from -100 to + 100 if ‘Offset in Pixels is ticked

Offset in Pixels

Used to specify exact number of pixels rather than % for offset - see Scale (x:y)

X-axis, Y-axis Center

Used to control the center position of the marquee effect within the model

Wrap X / Y

Used to warp the effect horizontally or vertically around the model.

Icon
Sequencer Grid
