  1. Effects
  2. Built-in Effects

Color Wash

PreviousCirclesNextCurtain

Last updated 5 years ago

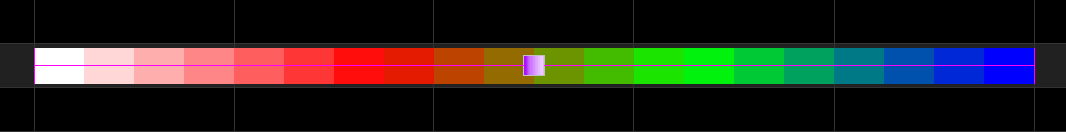

The Color Wash effect creates a wash effect of the selected color or colors across the model. Can be effective if multiple colors are selected and the effect is used as a background effect.

One or multiple colors can be used for the effect. If multiple colors are selected, then the ColorWash will use the selected colors repeating the colors depending on the ‘count’ setting.

Option/Settings

Description

Count

Number of times the colors selected will be repeated for the duration of the effect.

Each set of colors repeats as many times as the count value has been set to.

Can be adjusted via the Value Curves options.

Vertical Fade

Controls whether the wash effect should fade vertically.

Horizontal Fade

Controls whether the wash effect should fade horizontally.

Shimmer

Applies a shimmer effect to the Color Wash effect if selected.

Circular Palette

When selected, this smoothes the color transitions when the effect repeats per the count setting. If not selected there will be a hard transition between the last color selected and the first color selected.

Icon
Sequencer Grid
